F100J Principles Of Airflow, Pressure And Velocity Distribution Didactic Equipment Vocational Education Equipment Aerodynamics

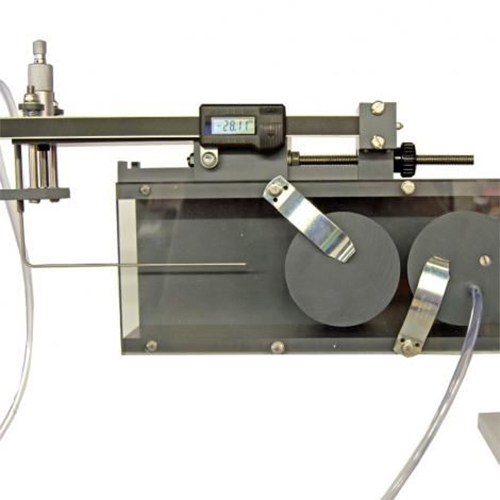

Description Understanding the interdependent nature of pressure, flow and velocityis important when designing a system and a students understanding ofthese principles will allow them to exploit these outcomes in any designprocess. The unit utilises a Pitot tube which is preciselyadjusted with a digital vernier slide horizontally and a non digitalmicrometer vertically. There are two pressure tappings, one in the Pitottube to measure total pressure, one in the disk to measure staticpressure and velocity at the cylinder surface. One disk is a blank, theother has a cylinder (with the pressure tapping) that is in the airflow.The purpose of this unit is to build up a 3d pressure map of the air as itflows over the cylinder. If the cylinder is the left hand position (blank onthe right) the pressure map is drawn close to the cylinder. Swap overthe disks to draw the pressure map further away from the cylinder. Features Introduce students to the concept of airflow, velocity and pressure Reinforce the notion that airflow, velocity and pressure areinterrelated and will affect system performance Provides students with a visual interpretation on systemperformance by plotting 3D map of pressure Part of a range of airflow accessories offering lower total cost ofOwnership Technical Specification 0mm-100mm Horizontal Indicator 3/16 " Ball Bearing Thrust Race Bearing 8.1mm 0-25mm Micrometer 45mm Diameter test cylinder Weights & Dimensions Net Dimensions: 340mm (excl pitot) x 100mm x 50mm (internal ductprofile) Net weight: 5kg
